Introduction

Principle & Structure

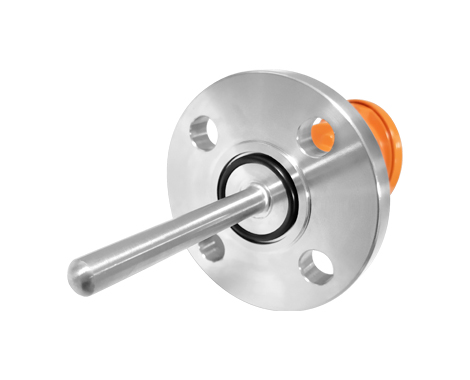

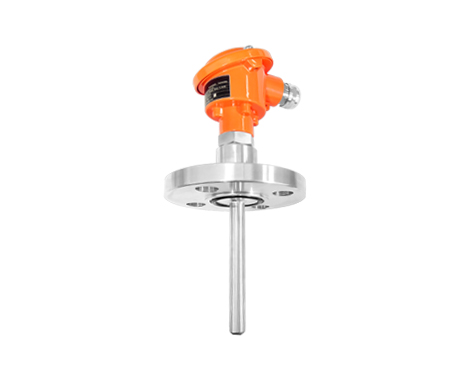

TK53T contains a PT100 probe (or PT1000), the resistance value of PT100 platinum thermal resistance will change with the change of temperature. 100 after PT means that its resistance value is 100 ohms at 0°C, and its resistance value is about 138.5 ohms at 100°C. When the PT100 is at 0°C, its resistance value is 100 ohms, and its resistance value will increase approximately uniformly as the temperature rises. Output current signal after passing through the transport circuit.

main feature

easy installation

Various ranges are available

A variety of specifications probe optional

All stainless steel shell, compact and sturdy structure, strong anti-interference ability

Standard way out

application

Suitable for measuring water, oil and gas media

It can be used in water supply systems, hydraulic and pneumatic devices, cooling systems, heating systems, air conditioning systems, automation engineering, etc.

technical parameter

	200...0°C,100...0°C,50...0°C,50...50 °C;
	0...50 °C; 0...80 °C; 0...100 °C; 0...120°C;
	0...150°C,0...200°C,0...450°C,0...500°C;
Measuring range:	Customer specified -200... 500°C interrange;
Accuracy class:	±0.2% F.S.
Accuracy class:	±0.5% F.S.
Probe size and pressure resistance:	Φ6 probe 16 bar
	Φ8 probe 40 bar
	Φ10 probe 63 bar
IP Grade:	IP65
Output signal:	PT100
Output signal:	PT1000
Response time:	0.5...3s（Typical value: 1 second）
Ambient temp.:	30...85°C
Common interfaces:	G1/2
	G1/4
	M20*1.5
Electrical materials:	Black NBR
Electrical materials:	Black NBR
Canning material:	Stainless steel 1.4301(304)
Contact part of the material:	Stainless steel 1.4435(316L)
Contact part of the material:	Stainless steel 1.4435(316L)
Additional protective tube material:	Stainless steel 1.4301(304)
	Stainless steel 1.4435(316L)
	Titanium alloy Ti
	Hastelloy HB
	Probe rod and sealing surface lined with PTFE
Electrical connection:	Wiring box
Electrical connection:	Wiring box

Selection table

TK53T-

Thermal resistance temperature sensor

Signal output

M

4...20mA output

Probe diameter (D)

6

Φ6 withstand voltage 16 bar （*）

8

Φ8 withstand voltage 40 bar

10

Φ10 withstand voltage 63 bar

Threaded connection

G1

G1/2

G2

G1/4

M2

M20*1.5

X

Customized

Probe length L1 (not including thread length)

15

15mm（*）

75

75mm

25

25mm

100

100mm（*）

50

50mm（*）

C

Customized mode

Cold end length L2

/50

50mm（≥-200°C;≤150 °C）

/100

100mm(≤350 °C)

/300

300mm(≤500 °C)

/S

Customer-specified

Wiring method

M

M20*1.5 cast aluminum self-connecting box

Temperature range

X

See "General range Code Table" for details.

Accuracy class

A

±0.2%

B

±0.5%

This PDF does not contain the complete data of the selection table. For selection, please contact the sales staff or email to sales@kewill-auto.cn to obtain the complete sample.
