Introduction

Principle & Structure

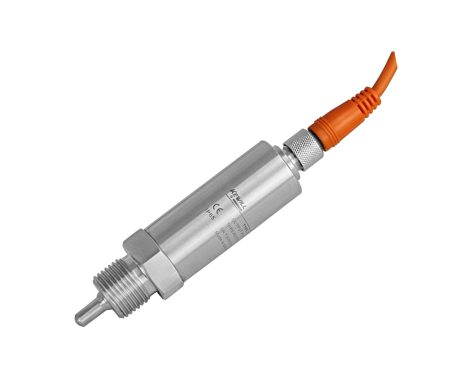

PT100 or PT1000 classA platinum thermal resistance principle, integrated temperature sensor has integrated temperature detection and signal, standard DIN connector outlet, small size.

main feature

easy installation

Various ranges are available

A variety of specifications probe optional

All stainless steel shell, compact and sturdy structure, strong anti-interference ability

Standard way out

application

Gas-liquid dual-purpose type, can be used in water supply system, hydraulic system, pneumatic system, cooling system, heating system, air conditioning system, automation engineering, etc.

technical parameter

Measuring range:			200...0°C, 100...0°C, 50...0°C, 50...50 °C; 0...50 °C; 0...80 °C; 0. ..100 °C; 0...120°C, 0...150°C, 0...200°C, 0...450°C, 0...500°C or as specified by the customer - Range between 200...500°C



Accuracy class:			±0.2%FS

Probe size and withstand voltage:

			Φ10 probe 100 bar
Protection class:
output signal:

Supply voltage:			No power required

Response time:			0.5...3s (typ. 1s)
Ambient temperature:			30...85°C
Common process interfaces:			G1/2
			G1/4
			M20*1.5
Electrical part material:			black NBR
Shell material:			Stainless steel 1.4301(304)
Wetted part material:			Stainless steel 1.4435 (316L)
Protection tube material:			Stainless steel 1.4301(304)
			Stainless steel 1.4435 (316L)
Electrical connections:			DIN standard connector (DIN43650)
			M12*1 Aviation Connector

Selection table

TK50-

Integrated temperature sensor

output

PT100 output

PT1000 output

Probe diameter

Φ6 Pressure 40 bar (*)

Φ8 Pressure 40 bar

Φ10 pressure 100 bar

Threaded connection

G1/2 male thread (*)

G1/4 male thread

M20*1.5 external thread

M27*2 external thread

Customized

Probe length L

7mm (short custom)

15mm（*）

25mm

50mm（*）

75mm

100mm（*）

Customized

Electrical outlet

M12*1 Aviation Connector

DIN standard connector (DIN43650)

temperature range

For details, please refer to "Regular Range Code Table"

This PDF does not contain the complete data of the selection table. For selection, please contact the sales staff or email to sales@kewill-auto.cn to obtain the complete sample.

Remarks: "*" is marked as stock standing or fast delivery

Optional: Cable Accessory A

CREAM-	M12 cable connector
		self binding post
		plug
			straight
			curved
				2m cable length
				5m cable length
				Required line length ( m )

Optional: cable accessory B

KEC-	Signal cable (DIN plug optional)
		2m cable length
		5m cable length
		Required line length ( m )
			ordinary cable
			shielded cable

Optional: Welding accessory C

KTW-	Welded base
		G1/2 base
		G1/4 base
		Shaped connection
			Stainless steel 1.4301(304)
			Stainless steel 1.4435 (316L)
			Customized Material Customized

Optional: protective sleeve D

KTC-	Protective casing Cannula
		Stainless steel 1.4301(304)
		Stainless steel 1.4435 (316L)
		Titanium alloy Ti
		Hastelloy HB
		Probe and sealing surface lined with PTFE
			Length, thread, diameter are matched with the main product
			Separate size, thread, diameter by agreement
