Introduction

Principle & Structure

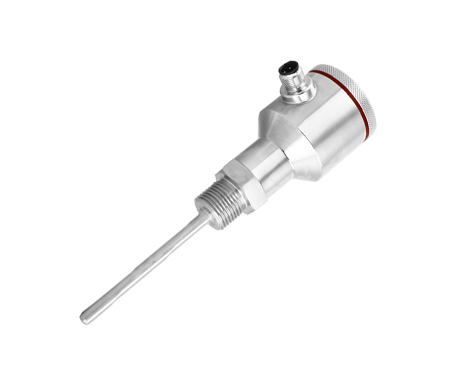

PT100 or PT1000 classA platinum thermal resistance principle, integrated temperature sensor has integrated temperature detection and signal, standard DIN connector outlet, small size.

main feature

easy installation

Various ranges are available

A variety of specifications probe optional

All stainless steel shell, compact and sturdy structure, strong anti-interference ability

Standard way out

application

Gas-liquid dual-purpose type, can be used in water supply system, hydraulic system, pneumatic system, cooling system, heating system, air conditioning system, automation engineering, etc.

technical parameter

suring range:			200...0°C,100...0°C,50...0°C, 50...50 °C;
			0...50 °C; 0...80 °C; 0...100 °C; 0...120°C;
			0...150°C,0...200°C,0...450°C,0...500°C;
			The customer can arbitrarily specify the range between -200...500°C ;
Accuracy class:			PT100 Class A
			PT1000 Class A
Probe size and withstand voltage:			Φ6 probe 40 bar
			Φ8 probe 40 bar
			Φ10 probe 100 bar
Protection class:			IP65
output signal:			PT100
			PT1000
Supply voltage:			No power required

Response time:			0.5...3s (typ. 1s)
Ambient temperature:			30...85°C
Common interface:			G1/2
			G1/4
			M20*1.5
Electrical part material:			black NBR
Shell material:			Stainless steel 1.4301(304)
Wetted part material:			Stainless steel 1.4435 (316L)
Optional protective tube material:			Stainless steel 1.4301(304)
			Stainless steel 1.4435 (316L)
			Titanium alloy Ti
			Hastelloy HB
			Probe and sealing surface lined with PTFE
Electrical connections:			M12*1 Aviation Connector

Selection table

TK51-

Temperature Sensor

Signal output

PT100 output

PT1000 output

Probe Diameter (D)

Φ6 Pressure 40 bar (*)

Φ8 Pressure 40 bar

Φ10 pressure 100 bar

Threaded connection

G1/2 male thread (*)

G1/4 male thread

M20*1.5 external thread

M27*2 external thread

Customized

Probe length (L)

7mm (short custom)

15mm（*）

25mm

50mm（*）

75mm

100mm（*）

Customized

Electrical outlet

M12*1 Aviation Connector

temperature range

For details, please refer to "Regular Range Code Table"

This PDF does not contain the complete data of the selection table. For selection, please contact the sales staff or email to sales@kewill-auto.cn to obtain the complete sample.

Remarks: "*" is marked as stock standing or fast delivery

Optional: Cable Accessory A

CREAM-	M12 cable connector
		self binding post
		plug
			straight
			curved
				2m cable length
				5m cable length
				Required line length ( m )

Optional: Welding accessory C

KTW-	Welded base
		G1/2 base
		G1/4 base
		Shaped connection
			Stainless steel 1.4301(304)
			Stainless steel 1.4435 (316L)
			Customized Material Customized

Optional: protective sleeve D

KTC-	Protective casing Cannula
		Stainless steel 1.4301(304)
		Stainless steel 1.4435 (316L)
		Titanium alloy Ti
		Hastelloy HB
		Probe and sealing surface lined with PTFE
			Length, thread, diameter are matched with the main product
			Separate size, thread, diameter by agreement
