Introduction

principle

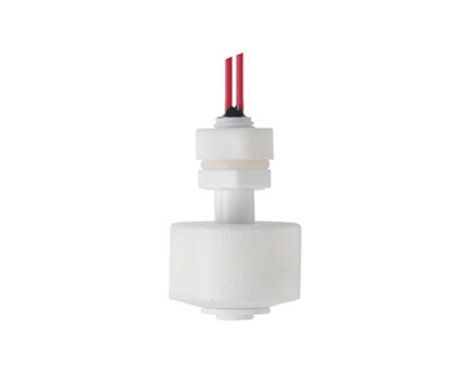

The miniature float level switch is a switch output type. When the liquid level rises or falls, it drives the stainless steel magnetic floating ball (floating block) to move up and down, and outputs an alarm in time to the alarm position.

technical parameter

Pressure resistance:			5、10、15 bar
Medium temperature:			-40～80℃（-40～200℃）
Media Density:			≥0.75g/cm³
Media Density:			0.75kg/cm³
output:			Contact Type: Reed Switch
			Contact capacity: 230VAC, 0.5A
			Output: normally open/normally closed optional
Protection class:			IP67
Wiring:			direct double line
Material:			Stainless steel (PP plastic)
Electrical life:			100000000 times

Selection table

Miniature float level switch-PP plastic selection table

model	signal type	Dimensions (Material: PP)
model	signal type	L	float code	d1	H	d2	M	h
LV-Mini60-24NO	Normally open	24.5	FP12	Φ18.0	8.2	Φ7.0	M8.0×1.25	2.7
LV-Mini60-24NC	Normally closed	24.5	FP12	Φ18.0	8.2	Φ7.0	M8.0×1.25	2.7
LV-Mini60-31NO	Normally open	31.0	FP02	Φ19.0	16.5	Φ7.0	M8.0×1.25	1.5
LV-Mini60-31NC	Normally closed	31.0	FP02	Φ19.0	16.5	Φ7.0	M8.0×1.25	1.5
LV-Mini60-32NO	Normally open	31.0	FP04	Φ24.0	17.0	Φ7.0	M8.0×1.25	4.5
LV-Mini60-32NC	Normally closed	31.0	FP04	Φ24.0	17.0	Φ7.0	M8.0×1.25	4.5
LV-Mini60-42NO（*）	Normally open	42.0	FP04	Φ24.0	17.0	Φ7.0	M8.0×1.25	5.5
LV-Mini60-42NC （*）	Normally closed	42.0	FP04	Φ24.0	17.0	Φ7.0	M8.0×1.25	5.5
LV-Mini60-52NO	Normally open	52.0	FP05	Φ24.0	22.0	Φ8.5	M10.0×1.5	7.0
LV-Mini60-52NC	Normally closed	52.0	FP05	Φ24.0	22.0	Φ8.5	M10.0×1.5	7.0
LV-Mini60-88NO	Normally open	88.0	FP05	Φ24.0	22.0	Φ8.5	M10.0×1.5	7.0
LV-Mini60-88NC	Normally closed	88.0	FP05	Φ24.0	22.0	Φ8.5	M10.0×1.5	7.0

Remarks: (*) are in stock or standing.

Float code (PP) material	float size	weight	proportion	Pressure resistance	Operating temperature	Applicable media
Float code (PP) material	Outer diameterheightinner diameter	g	（G / cm3)	kg/cm2	°C	Applicable media
FP04	Φ2417Φ7.5	4.2	0.65	5	-40~+80	water
FP02	Φ1916.5Φ8	3	0.8	5	-40~+80	water
FP12	Φ188.2Φ7.5	1.15	0.68	5	-40~+80	water
FP05	Φ2422Φ9	5	0.6	5	-40~+80	water

Miniature Float Level Switch-Stainless Steel Type Selection Table

model	signal type	Dimensions (Material: Stainless Steel)
model	signal type	L	float code	d1	H	d2	M	h
LV-Mini61-46NO （*）	Normally open	46.0	FS02	Φ28.6	28.0	Φ8.0	M10×1.0	26.0
LV-Mini61-46NC （*）	Normally closed	46.0	FS02	Φ28.6	28.0	Φ8.0	M10×1.0	26.0
LV-Mini61-187NO	Normally open	187.0	FS01	Φ25.4	24.5	Φ8.0	M10×1.0	170.0
LV-Mini61-187NC	Normally closed	187.0	FS01	Φ25.4	24.5	Φ8.0	M10×1.0	170.0
LV-Mini61-349NO	Normally open	349.0	FS02	Φ28.6	24.5	Φ8.0	M16×2.0	320.0
LV-Mini61-349NC	Normally closed	349.0	FS02	Φ28.6	28.0	Φ8.0	M16×2.0	320.0

Float code (stainless steel)	float size	weight	proportion	Pressure resistance	Operating temperature	Applicable media	material
Float code (stainless steel)	Outer diameterheightinner diameter	g	（G / cm3)	kg/cm2	°C	Applicable media	material
FS02	Φ28.628Φ9.5	8.4	0.7	15	-40~+200	Water, oil, weak acid and alkali	316L
FS01	Φ25.424.5Φ9.5	6.2	0.82	10	-40~+200	Water, oil, weak acid and alkali	304

Remarks: The above switches are low-power dry reed switches. Signal contact capacity: 230VAC, 0.5A; if you need high power or high current higher than this standard, please consult the remarks order before ordering.
