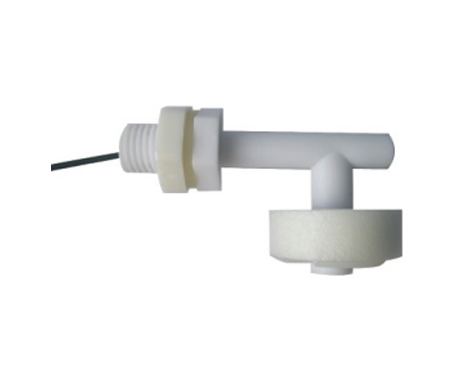

LV-Mini-70 Side Mounted Float Level Switch

LV-MINI-70
LV-MINI-70

Introduction

The product is a switch output type. When the liquid level rises or falls, it drives the magnetic floating ball (floating block) to move up and down, and outputs an alarm in time to the alarm position.

technical parameter

Horizontal (side-mounted) built-in type, plastic shell, external thread M12*1.0, wire length 350mm.

Selection table

modelsignal type
Lfloat coded1Hd2Mh
LV-Mini-70NONormally open41.5FS02Φ26.010.0Φ9.5M12×1.023.0
LV-Mini-70NCNormally closed41.5FS02Φ26.010.0Φ9.5M12×1.023.0
