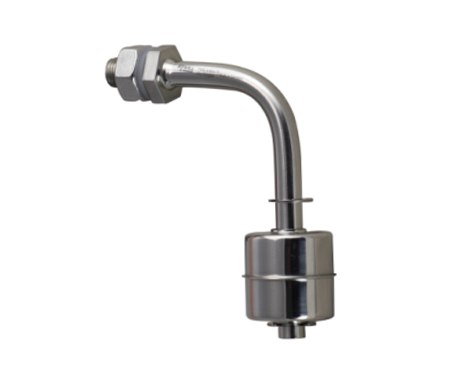

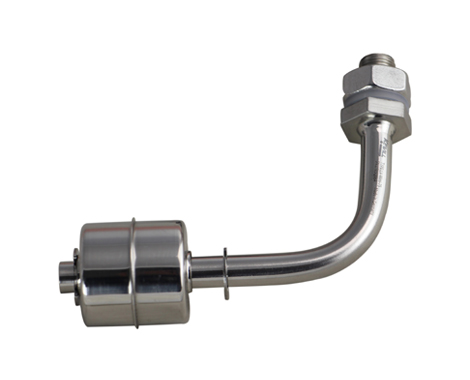

The product is a switch output type. When the liquid level rises or falls, it drives the magnetic floating ball (floating block) to move up and down, and outputs an alarm in time to the alarm position.
| Pressure: | 15 bar | |||
| Medium temperature: | -40～200℃ | |||
| Media Density: | ＞0.7g/cm³ | |||
| output: | Contact Type: Reed Switch | |||
| Contact capacity: 250VAC, 0.5A | ||||
| Output: normally open/normally closed optional | ||||
| Protection class: | IP65 | |||
| Wiring: | direct double line | |||
| Material: | Stainless steel 1.4301(304) (regular option) | |||
| Stainless steel 1.4435 (316L) | ||||
| Electrical life: | 100000000 times | |||
| model | signal type | Dimensions (Material: Stainless Steel) | ||||||||||||||||||
| L | float code | d1 | H | d2 | M | h | ||||||||||||||
| LV-Mini-75NO（*） | Normally open | 81.0 | FS02 | Φ28.6 | 28.0 | Φ8.0 | M10×1.0 | 50.0 | ||||||||||||
| LV-Mini-75NC（*） | Normally closed | 81.0 | FS02 | Φ28.6 | 28.0 | Φ8.0 | M10×1.0 | 50.0 | ||||||||||||
| LV-Mini-107NO | Normally open | 107.0 | FS02 | Φ28.6 | 28.0 | Φ8.0 | M10×1.0 | 84.0 | ||||||||||||
| LV-Mini-107NC | Normally closed | 107.0 | FS02 | Φ28.6 | 28.0 | Φ8.0 | M10×1.0 | 84.0 | ||||||||||||
| Float Code (Stainless Steel) | float size | weight | proportion | Pressure resistance | Operating temperature | Applicable media | material | ||||||||||||||
| Outer diameter*height*inner diameter | g | （G / cm3) | kg/cm2 | °C | |||||||||||||||||
| FS02 | Φ28.6*28*Φ9.5 | 8.4 | 0.7 | 15 | -40~+200 | Water, oil, weak acid and alkali | 316L | ||||||||||||||
Remarks: If the above switch has no parameter remarks, it is a low-power reed switch. Signal contact capacity: 230VAC, 0.5A;
