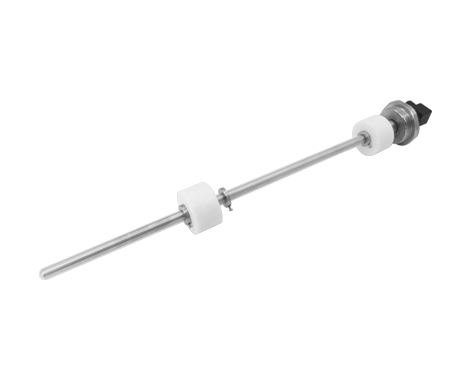

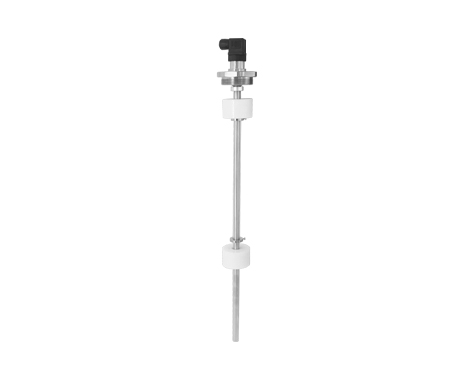

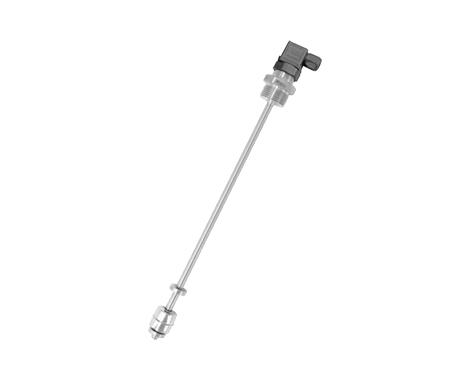

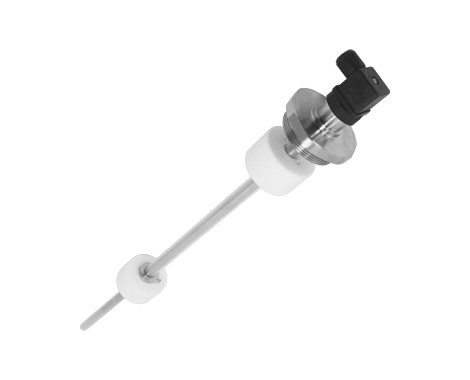

Principle & Structure
When the liquid level rises or falls, it drives the stainless steel magnetic floating ball to move up and down, and the floating ball triggers the magnetic reed switch in the detection rod to send out a signal.
Features
Reliable performance and long service life, it can be used for limit monitoring of liquid level. Suitable for top or bottom mounting.
application
For liquid level measurement with density ≥0.65g/cm3.
| greatest pressure: | 10bar＆16bar | ||
| Media Density: | See the selection table float material | ||
| output | Reed switch signal (normally open or normally closed) | ||
| Protection class: | IP65 | ||
| Wiring: | Hessman terminal connector (DIN43650) | ||
| Material: | Float: | Stainless steel 1.4435 (316L) | |
| NBR rubber | |||
| PP polypropylene | |||
| Rod: | Stainless steel 1.4435 (316L) | ||
| PP polypropylene | |||
| size: | Rod: | F8 | |
| Float: | Φ28*28*Φ9.5 stainless steel 1.4435 | ||
| Φ25*16*Φ10 NBR rubber | |||
| Φ22*24*Φ9.5 PP polypropylene | |||
| Process connection: | Threaded connection NPT1" & G1 | ||
| Contact rating: | 220VAC,50W,max 0.5A | ||
| Medium temperature: | Stainless steel 1.4435 float: -40~200℃ | ||
| NBR rubber float: -20~110℃ | |||
| PP polypropylene float: -20~85℃ | |||
| LV10- | Float type liquid level switch (can be customized) | |||||||
| style type | ||||||||
| Standard Hessman socket type | ||||||||
| Small cast aluminum junction box type | ||||||||
| direct double line | ||||||||
| Measuring range | ||||||||
| Measuring range 115mm | ||||||||
| Measuring range 250mm | ||||||||
| Measuring range 500mm | ||||||||
| Measuring range 700mm | ||||||||
| The measurement range is specified by the customer, the maximum is 1000mm | ||||||||
| Connection thread | ||||||||
| External thread link G1″(*) | ||||||||
| External thread link NPT1″ | ||||||||
| Action point (LV10 up to 2 alarm points, multi-channel requirements optional LV30 series) | ||||||||
| 1 action point | ||||||||
| 2 action points | ||||||||
| Float size and application medium | ||||||||
| Φ28*28*Φ9.5 stainless steel 1.4435 specific gravity 0.7g/cm³, water and oil weak acid and weak base, -40~200°C | ||||||||
| Φ25*16*Φ10 NBR rubber specific gravity 0.65g/cm³, water gasoline kerosene, -20~110°C | ||||||||
| Φ22*24*Φ9.5 PP polypropylene specific gravity 0.65g/cm³, water, -30~85°C | ||||||||
| Stroke rod material | ||||||||
| Stainless steel 1.4301 (stainless steel 304) (*) | ||||||||
| Stainless steel 1.4435 (stainless steel 316L) (*) | ||||||||
| PP polypropylene | ||||||||
| Pressure rating | ||||||||
| 10bar | ||||||||
| 16bar (high pressure customized type) | ||||||||
| The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples. | ||||||||
