Introduction
Principle & Structure

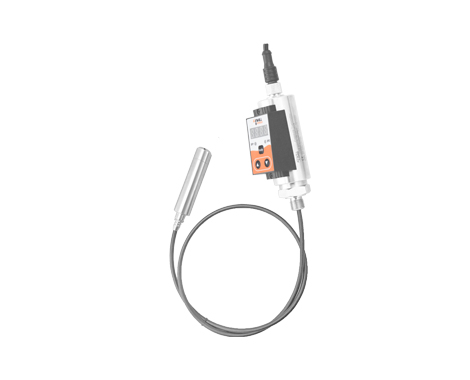

The input hydrostatic liquid level transmitter is based on the principle of diffusion silicon, all stainless steel shell, waterproof design, used for liquid level measurement or other pressure measurement occasions. It integrates liquid level measurement, LED display output, and control in an integrated intelligent digital display liquid level measurement and control product. This product is an all-electronic structure and has no mechanical moving parts.
application
Industrial field level measurement and control, ship and navigation systems, hydrological measurement and monitoring, city and water supply reservoir dam level measurement, circulating water and sewage treatment systems.
Features
A compact, one-piece design allows all circuitry to be contained within the probe. The sensor components have protection grade IP68, junction box IP65&IP68, anti-corrosion, can be immersed in water up to 300m deep, PTFE cable, anti-lightning design.
4 digits display the current liquid level value, the liquid level preset switch point and hysteresis switch output switch value can be arbitrarily set between zero point and full scale, the shell is equipped with node action LEDs for easy observation of button adjustment and on-site settings. A variety of parameters, easy to operate, 2-way switch output with load capacity 1.2A analog output (4 ~ 20mA),
