Principle & Structure

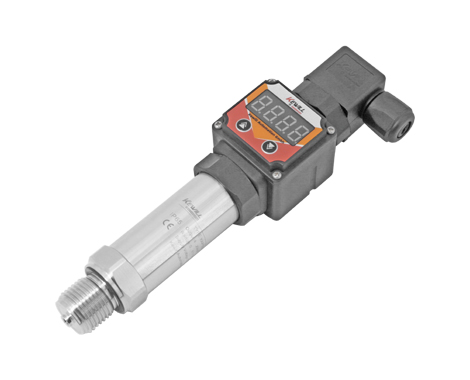

On-site display hydrostatic level transmitter, the best choice for customers with small installation space, visual unit.
Features
Ceramic technology, no medium liquid for measuring element; high accuracy, stable performance, small temperature drift; strong impact resistance, good linearity; high long-term stability; direct on-site display; each customized range and the corresponding mm mm, cm cm, mm.
| Measuring range: | 0~0.5m to 50m | ||||||||
| Accuracy: | 0.2% | ||||||||
| Linearity: | ±0.05% | ||||||||
| Repeatability: | ≤±0.1FS | ||||||||
| stability: | Better than 0.01% of span per year | ||||||||
| Temperature effect: | ＜±0.02%FS/K | ||||||||
| Response time: | <1ms(10…90%FS） | ||||||||
| Power supply: | 10～36V DC | ||||||||
| load: | ≥10KΩ(0..10V）,≥5KΩ（1…5V） | ||||||||
| ≤(UB-10)V/ 0.02A (4～20mA) | |||||||||
| energy consumption: | Signal current (2-wire), 8mA (3-wire) | ||||||||
| Electrical Protection: | Overload/Reverse Phase Protection | ||||||||
| Ambient temperature: | 0~65℃ | ||||||||
| Medium temperature: | -25~80℃ | ||||||||
| Storage temperature: | 0~40℃ | ||||||||
| Protection class: | IP65 | ||||||||
| shell material: | Stainless steel 1.43.1 (304) | ||||||||
| Wetted material: | Stainless steel 1.4435 (316L) | ||||||||
| seal: | Fluorine rubber O-ring | ||||||||
| weight: | 0.10kg | ||||||||
| Electrical connections: | Herssman joint (DIN43650) | ||||||||
| (unit m, meter) | (unit cm, cm) | ||||
| range value | Selection code | range value | Selection code | ||
| 0...0.5m | M0.5 | 0…50cm | CM50 | ||
| 0...1 m | M1 | 0…100cm | CM100 | ||
| 0…2m | M2 | 0…200cm | CM200 | ||
| 0…3m | M3 | 0…300cm | CM300 | ||
| 0…4m | M4 | 0…400cm | CM400 | ||
| 0...5 m | M5 | 0…500cm | CM500 | ||
| 0…~m | M~ | 0…~cm | CM~ | ||
| 0…10m | M10 | 0…1000cm | CM1000 | ||
| 0…~m | M~ | 0…~cm | CM~ | ||
| 0…50m | M50 | 0…5000cm | CM5000 | ||
| (unit mm, mm) | |||||
| range value | Selection code | ||||
| 0…500mm | MM0.5 | ||||
| 0…1000mm | MM1000 | ||||
| 0…2000mm | MM2000 | ||||
| 0…3000mm | MM3000 | ||||
| 0…4000mm | MM4000 | ||||
| 0…5000mm | MM5000 | ||||
| 0…~mm | MM~ | ||||
| 0…10000mm | MM10000 | ||||
| 0…~mm | MM~ | ||||
| 0…50000mm | MM50000 | ||||
| Note: If the required liquid level range is not in the standard list, the measurement range value can be set according to customer requirements and displayed on site or transmitted remotely. For example, the required liquid level height range: 5.5 meters, the liquid level range code can be written as M5.5; 250 cm, the selection code is CM250; 800 mm, the selection code is MM800. | |||||
| LV61D- | Live Display Hydrostatic Level Transmitter | |||||
| range | ||||||
| Unit: m | ||||||
| Unit: cm cm | ||||||
| Unit: mm | ||||||
| type of medium | ||||||
| Water medium (nominal density 1.0X10?㎏/m?) | ||||||
| Oil or mixed medium (density needs to be noted when ordering) | ||||||
| Process connection interface thread (external thread) | ||||||
| NPT1/4 | ||||||
| NPT1/2 | ||||||
| G1/4 *） | ||||||
| G1/2 *） | ||||||
| M20*1.5 （*） | ||||||
| Output signal type | ||||||
| 4…20mA output (*) | ||||||
| 0…10mA output | ||||||
| 1…5VDC output | ||||||
| 0…5VDC output | ||||||
| Electrical connections | ||||||
| Hessman joint (DIN43650) | ||||||
| The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples. | ||||||
