Principle & Structure
It is suitable for the measurement of the medium with particulate impurities or components and the measurement of the medium with lower viscosity.
Be applicable
● Mud, coal slurry,
● paint, crude oil
● Viscous media such as chemical coatings
● Liquid level measurement in non-hermetic containers of viscous media and media above plastic and rubber manufacturing equipment
| Measuring range: | 0~0.5m to 50m |
| Accuracy: | 0.2%, |
| Linearity: | ±0.2% |
| Repeatability: | ≤±0.1FS |
| stability: | Better than 0.01% of span per year |
| Temperature effect: | ＜±0.02%FS/K |
| Response time: | <1ms(10…90%FS） |
| powered by: | 10～30V DC |
| load: | ≥10KΩ(0..10V）,≥5KΩ |
| ≤(UB-10)V/ 0.02A (4～20mA) | |
| energy consumption: | Signal current (2-wire), 8mA (3-wire) |
| Electrical Protection: | Overload/Reverse Phase Protection |
| Ambient temperature: | -30~85℃ |
| Medium temperature: | -25~80℃ |
| Storage temperature: | -30~100℃ |
| Protection class: | IP65 |
| shell material: | Stainless steel 1.43.1 (304) |
| Wetted material: | Stainless steel 1.4435 (316L) |
| seal: | Fluorine rubber O-ring |
| weight: | 0.10kg |
| Electrical connections: | Herssman joint (DIN43650) |

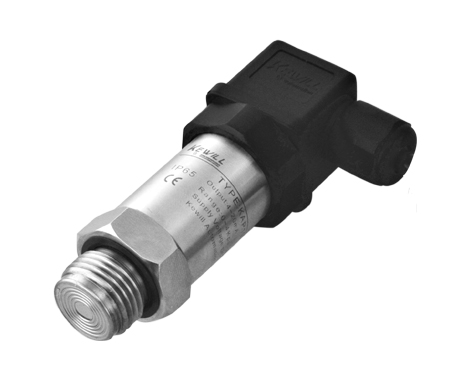

| LV63- | Flat film hydrostatic level transmitter | ||||||
| range | |||||||
| Unit: m | |||||||
| Unit: cm cm | |||||||
| Unit: mm | |||||||
| type of medium | |||||||
| Water medium (nominal density 1.0X10?㎏/m?) | |||||||
| Oil or mixed medium (density needs to be noted when ordering) | |||||||
| Process connection interface thread (external thread) | |||||||
| G1/2 *） | |||||||
| M20*1.5 （*） | |||||||
| Output signal type | |||||||
| 4…20mA output (*) | |||||||
| 0…5V output (*) | |||||||
| Electrical connections | |||||||
| Hessman joint (DIN43650) | |||||||
| (special alternative) VARIO | |||||||
| No accessories required | |||||||
| 42*42 square LCD digital display unit | |||||||
| Cast Aluminum Sealed Junction Box (not shown) | |||||||
| The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples. | |||||||
