Introduction

Principle & Structure

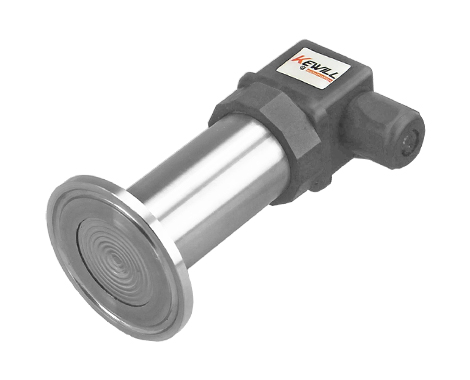

The LV64 sanitary hydrostatic level transmitter uses a flat-film silicon piezoresistive isolation film oil-filled core as the signal measuring element, and the signal processing circuit located in the stainless steel shell converts the sensor signal into a standard output signal. Effectively prevent the problem of easy crystallization medium clogging the pressure inlet.

Features

● Ф50.4 universal sanitary clamp chuck connection

● Measuring range 0~0.5m to 50m

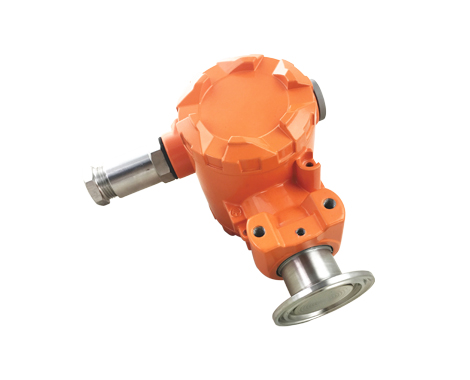

● Stainless steel structure or cast aluminum explosion-proof structure

● IP65

application

Non-corrosive gas and liquid pressure measurement of 316L stainless steel.

Used in medical, biological products, food hygiene and other industries.

Used in paper chemical industry, sewage level and beverage tank pressure measurement.

technical parameter

Measuring range:

0~0.5m to 50m

Overload allowed:

Less than or equal to 1.5 times the rated range

Accuracy:

±0.25% (typ.) ±0.5% (max.)

Long term stability:

±0.1%FS/year (typical) ±0.2%FS/year (maximum)

Zero temperature drift:

±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa）

Full-scale temperature drift:

±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa）

Operating temperature:

-20℃~80℃

Storage temperature:

-40℃~120℃

Power supply:

≥10KΩ(0..10V）,≥5KΩ

output signal:

≤(UB-10)V/ 0.02A (4～20mA)

Pressure port:

Clamp chuck

shell material:

Stainless steel or cast aluminum

Diaphragm material:

Stainless steel 1.4435 (316L)

O-ring:

Fluorine rubber O-ring

cable:

polyethylene

Insulation resistance:

100MΩ 100VDC

Power supply:

10～30V DC

Enclosure rating:

IP65

Selection table

LV64-	Sanitary Flush Membrane Hydrostatic Level Transmitter
	range
		Unit: m
		Unit: cm cm
		Unit: mm
		type of medium
			Water medium (nominal density 1.0X10³㎏/m³)
			Oil or mixed medium (density needs to be noted when ordering)
			Process connection interface thread (external thread)
				G1/2 *）
				M201.5 （）
				Output signal type
					4…20mA output (*)
					Electrical connections
						Hessman joint (DIN43650)
						Explosion-proof functional shell
						(special alternative) VARIO
							No optional accessories required
							LCD display unit
							Docking chuck and clamp fastener for matching installation
The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.
