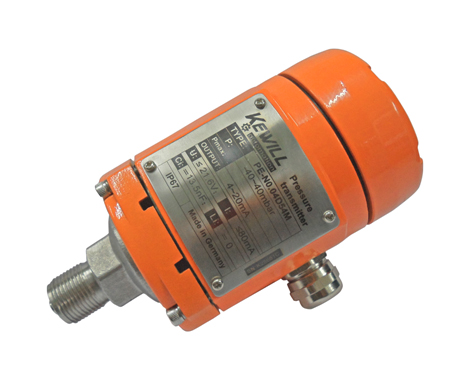

Introduction

Principle & Structure

Based on the ceramic capacitor technology, when the pressure on the ceramic capacitor increases, the capacitance value increases correspondingly, and the capacitance value is proportional to the pressure value.

Features

Strong overload capacity, good stability, better than 0.1% of the full scale per year, strong anti-interference ability, extremely high accuracy and repeatability, up to 0.2, 0.5 grades, and good corrosion resistance of the ceramic measurement interface. Flush film versions are available for viscous media. Zero and full scale can be adjusted on site. With LED display.

application

Gas-liquid dual-purpose type, can be used in hydraulic and pneumatic systems. Applicable to the following industries:

Steel industry, machinery and equipment, air compression industry, refrigeration and air conditioning, lifting and transmission systems.

technical parameter

Range:

See the table below for details

storage temperature:

-40～120℃

Accuracy class:

0.2%, 0.5% optional

Temperature effects:

＜±0.02%FS/K

Linearity:

±0.2% or ±0.5%

Response time:

<5ms (10% to 90% range)

Hysteresis:

≤±0.01% of full scale

Operating Voltage:

12～36V DC

Repeatability:

≤±0.1% of range

Load Resistance:

≤1KΩ

stability:

Better than 0.01% per annum

Current consumption:

Signal current (two-wire type), 8mA (three-wire type)

Ambient temperature:

-30…85℃

Protection class:

IP65

Medium temperature:

-30…80℃

Shell material:

Die-cast aluminum

Range code

Standard range code table 1 (relative pressure)
Standard range	code	Standard range	code
-20…20m bar	N0.02	0…1 bar	GB1
-40…40m bar	N0.04	0…2 bar	GB2
-70…70m bar	N0.07	0…3.5 bar	GB3.5
-100…100m bar	N0.1	0…5 bar	GB5
-200…200m bar	N0.2	0…7 bar	GB7
-350…350m bar	N0.35	0…10 bar	GB10
-1…0 bar	N0	0…20 bar	GB20
-1…1 bar	N1	0…35 bar	GB35
-1…3 bar	N3	0…70 bar	GB70
-1…24 bar	N24	0…100 bar	GB100
0…10 mbar	GB0.01	0…150 bar	GB150
0…40 mbar	GB0.04	0…175 bar	GB175
0…100 mbar	GB0.1	0…200 bar	GB200
0…200 mbar	GB0.2	0…275 bar	GB275
0…350 mbar	GB0.35	0…300 bar	GB300
0…750 m bar	GB0.75	0…600 bar	GB600

Standard range code table 2 (absolute pressure)
Standard range	code	Standard range	code
0…1 bar	AB1	0…70 bar	AB70
0…2 bar	AB2	0…100 bar	AB100
0…3.5 bar	AB3.5	0…150 bar	AB150
0…5 bar	AB5	0…175 bar	AB175
0…7 bar	AB7	0…200 bar	AB200
0…10 bar	AB10	0…275 bar	AB275
0…20 bar	AB20	0…300 bar	AB300
0…35 bar	AB35

Selection table

ON-	Universal Pressure Transmitter
	Range code
		Negative pressure (see range code table for range)
		Gauge pressure (for the range, see the range code table. This item is for general application selection) (*)
		Absolute pressure (see range code table for range)
		Show options
			No display on site
			Meter with LED display
			Accuracy class
				0.20% (Level 0.2)
				0.50% (level 0.5)
				Connection method
					External thread M20×1.5
					External thread G1/2
					External thread NPT1/2
					Flush membrane standard interface M27×2
					special design
					Output signal type
						4~20mA output (*)
						0…10mA output
						0~5VDC output
						0~10VDC output
The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.

Note: If the required range is not in the standard list, please indicate it when ordering, and it can be calibrated according to customer requirements. For example, the required range: gauge pressure 0…25 bar, the range code can be written as GB25.

Remarks: * marked as fast delivery type or spot stock
