Introduction
Principle & Structure

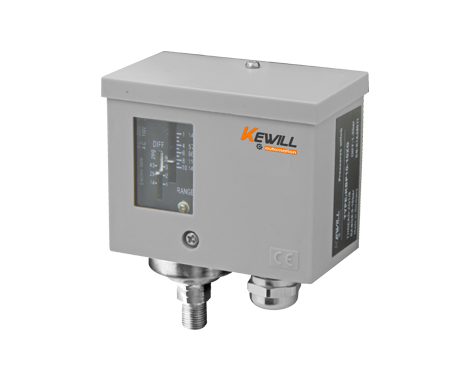

The KBP10 pressure switch has a built-in bellows and mechanical structure. When the system pressure rises or falls, the corresponding adjustment spring and corrugated steel produce extension or contraction displacement, and the switch is pushed through the lever to cut off or connect the control circuit.
Features
Compact design, wide measuring range (0…30bar), high repeatability, adjustable hysteresis, silver plated contacts.
application
Can be used for water, oil, gas pressure measurement.
