Introduction
Principle & Structure

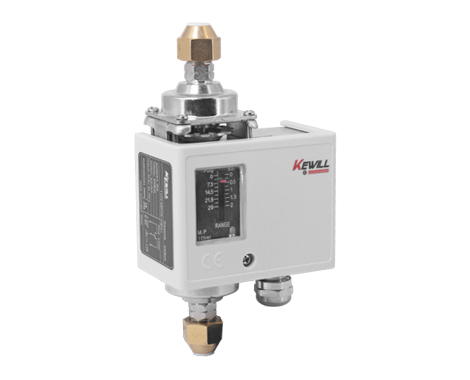

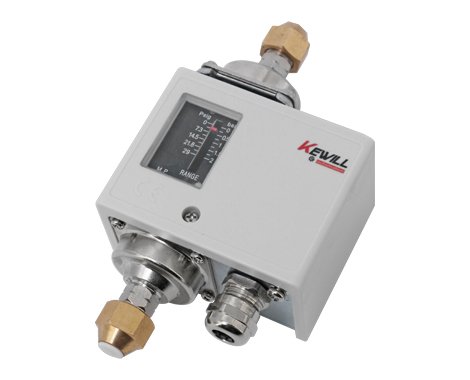

KBP20 series differential pressure switch has built-in bellows and mechanical mechanism. When the system pressure rises or falls, the corresponding adjustment spring and corrugated steel will produce extension or contraction displacement, and the switch will be pushed through the lever to cut off or connect the control circuit.
Features
Compact design, wide measuring range (0…6bar), high repeatability, adjustable hysteresis, silver plated contacts.
application
Can be used for: water, oil, gas pressure measurement.
