Introduction

Principle & Structure

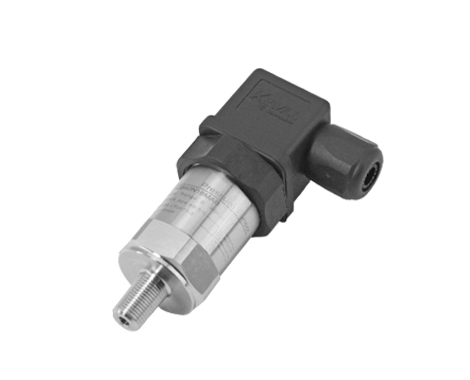

KAP05 compact pressure transmitter is a cost-effective product specially designed for air compressors and refrigeration equipment. It adopts the latest technology and is equipped with a self-developed high-performance transmitter circuit. It is a small size, strong moisture-proof ability, and anti-electromagnetic interference ability. Strong transmitter. The products have undergone strict testing and aging screening of components, semi-finished products and finished products, and their performance is stable and reliable.

Features

● Small size

● packard metripack or flying leads

application

Non-corrosive gas and liquid pressure measurement of 316L stainless steel.

Used in air compressor equipment, air conditioning refrigeration equipment, vacuum equipment, hydraulic control equipment and other industrial processes.

technical parameter

Measuring range:			0 to 1bar&0 to 50bar
Overload allowed:			Less than or equal to 1.5 times the rated range
Pressure Type:			Negative pressure, gauge pressure, absolute pressure type
Accuracy:			±0.25% (typ.) ±0.5% (max.)
Long term stability:			±0.1%FS/year (typical) ±0.2%FS/year (maximum)
Operating temperature:			-20℃~80℃
Storage temperature:			-40℃~120℃
Power supply:			15~30VDC
output signal:			4~20mA、0~5V、0~10V
Pressure port:			M20×1.5 G1/4 or user's choice
shell material:			316L stainless steel SUS1.4310
Diaphragm material:			316L
O-ring:			fluororubber
cable:			polyethylene
Insulation resistance:			100MΩ 100VDC
Enclosure rating:			IP65、IP68

Selection table

KAP05-	Small pressure transmitter
	Measuring range
		Negative pressure-1 to 0bar
		Gauge pressure (for the range, see the range code table. This item is for general application selection) (*)
		Absolute pressure (see range code table for range)
		0...25 bar (0...363 psi)
		0...10 bar (0...145 psi)
		Interface thread (external thread)
			M12*1.25
			NPT1/8
			NPT1/4
			G1/4 (*)
			G1/2 (*)
			M201.5 ()
			Output signal type
				4~20mA current signal output(*)
				Electrical connection type
					Hirschmann plug connection (DIN43650) (*)
					packard metripack electrical connections
					Direct wiring (required for IP68 protection level)
The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.
