Introduction

Principle & Structure

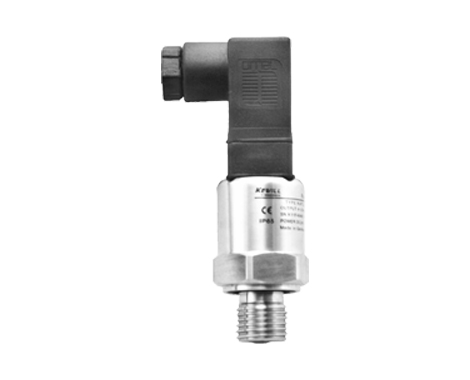

The KAP06 compact pressure transmitter adopts a diffused silicon core and an all-stainless steel package.

Features

0～160bar pressure range measurement; a variety of industrial standard signal output optional wiring methods are connectors or direct leads; compact shape design, cost-effective; a variety of pressure interfaces to choose from.

application

Mechanical engineering applications: measurement of various water pressure and air pressure; medical and health applications in the food and beverage industry; general industrial control fields.

technical parameter

Measuring range:			0 to 160bar
Accuracy class:			5‰ total range
Temperature application:			–40~80°C
Response time:			≤0.2 seconds
Protection class:			IP65
output signal:			4-20mA (two-wire system)
energy consumption:			Signal current (2-wire), 8mA (3-wire)
Electrical Protection:			Overload/Reverse Phase Protection
Structural material:			Pressure fitting material is stainless steel
			Housing material is stainless steel
Process connection:			G1/4, NPT1/4
			(can be customized according to customer requirements)
Overload pressure:			150%FS
Supply voltage:			24(12~36)VDC
Compensated temperature range:			0~70℃
Wiring:			Terminal wiring

Selection table

KAP06-	Compact pressure transmitter (diffusion silicon)
	range
		Gauge pressure (for the range, see the range code table. This item is for general application selection) (*)
		Absolute pressure (see range code table for range)
		precision
			0.50% (level 0.5)
			Process connection (male thread)
				M12*1.25
				NPT1/4（*）
				G1/4 *）
				Output signal type
					4 to 20mA
					Electrical connections
						Small Hessman Connector
The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.
