Principle & Structure

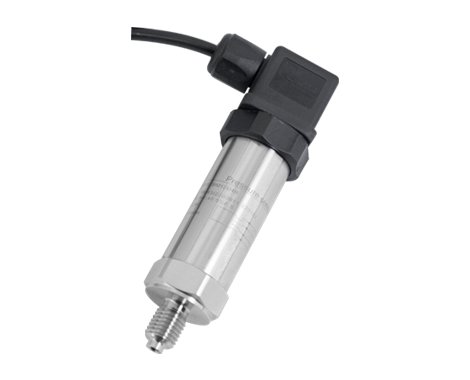

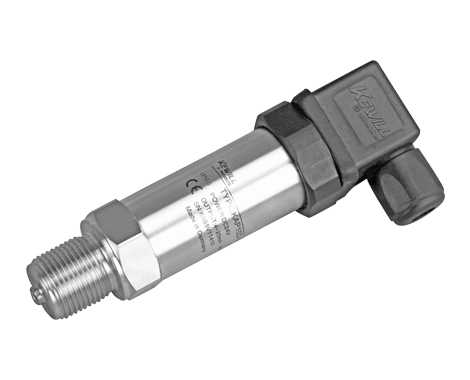

Compact diffused silicon pressure transmitter, the best choice for OEM customers.
Features
Wide operating temperature range, compact structure, suitable for harsh environments, high reliability.
Wide range (0…600bar), can be used to measure gauge pressure and absolute pressure.
Suitable for mechanical equipment, hydropneumatic devices, locomotives, pressure control.
| Measuring range : | see range code |
| Overload range: | ≤10bar, 4×;≤600bar, 2×; |
| Accuracy : | 0.2%, 0.5% |
| Linearity: | ±0.2% |
| Repeatability: | ≤±0.1FS |
| stability: | Better than 0.01% of span per year |
| Temperature effects: | ＜±0.02%FS/K |
| Response time: | <1ms(10…90%FS） |
| powered by: | 10…30V DC |
| load: | ≥10KΩ(0..10V）,≥5KΩ(1..5V） |
| ≤(UB-10)V/ 0.02A (4…20mA) | |
| energy consumption: | Signal current (2-wire), 8mA (3-wire) |
| Electrical Protection: | Overload/Reverse Phase Protection |
| Ambient temperature: | -30…85℃ |
| Medium temperature: | -25…80℃ |
| Storage temperature: | -30…100℃ |
| Protection class: | IP65 |
| shell material: | Stainless Steel 304 |
| Wetted material: | Stainless Steel 316L |
| seal: | Fluorine rubber |
| weight: | 0.10kg |
| Electrical connections: | Herssman joint (DIN43650) |
| KAP10- | Universal pressure transmitter (diffusion silicon principle) | |||||
| range | ||||||
| Negative pressure-1 to 0bar | ||||||
| Gauge pressure (for the range, see the range code table. This item is for general application selection) (*) | ||||||
| Absolute pressure (see range code table for range) | ||||||
| Accuracy class | ||||||
| 0.20% (Level 0.2) | ||||||
| 0.50% (level 0.5) | ||||||
| Process connection (male thread) | ||||||
| M12*1.25 | ||||||
| NPT1/4 | ||||||
| NPT1/2 | ||||||
| G1/4 *） | ||||||
| G1/2 *） | ||||||
| M20*1.5 （*） | ||||||
| Output signal type | ||||||
| 4~20mA output (*) | ||||||
| 0…10mA output | ||||||
| 0~5VDC output | ||||||
| 0~10VDC output | ||||||
| Electrical connections | ||||||
| Hessman joint (DIN43650) | ||||||
| The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples. | ||||||
