Introduction

Principle & Structure

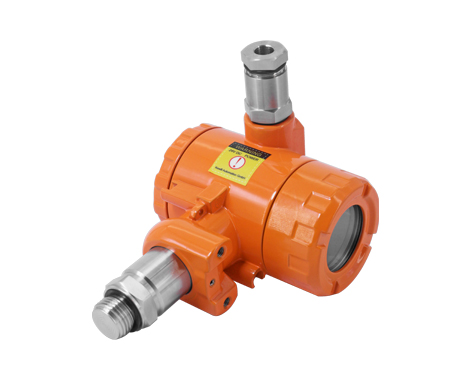

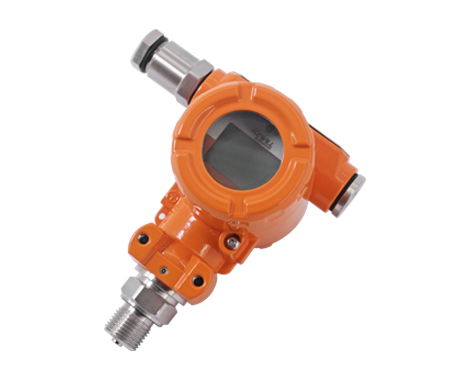

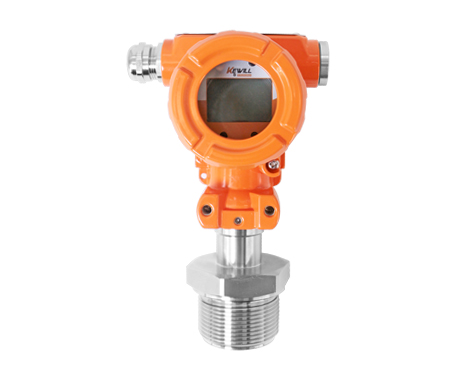

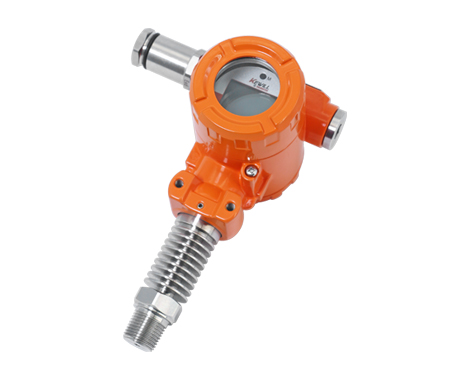

KAP40 pressure transmitter is an intelligent measurement and control product that integrates pressure measurement, display, and transmission output. It corrects and compensates for sensor nonlinearity and temperature drift, and adjusts transmitter parameters online through a handheld communicator to achieve accurate digital/ Data transmission, field device diagnosis, remote two-way communication.

Features

● Wide measurement range and full structure;

● With HART communication protocol or RS485 communication protocol;

● High-brightness LCD pressure field display & LED optional.

application

Non-corrosive gas and liquid pressure measurement of 316L stainless steel;

Used in petroleum, chemical, metallurgy, electric power, hydrology and other industrial process sites.

technical parameter

Measuring range:	-1 to 0bar & 0 to 0.1bar & 0 to 1000bar
Overload allowed:	Less than or equal to 1.5 times the rated range or 1100bar (whichever is the smallest)
Pressure Type:	Gauge pressure, absolute pressure, sealed reference pressure type
Accuracy:	±0.25%（0-100bar） ±0.5%（0-1000bar）
Long term stability:	±0.2%FS/year
Zero temperature drift:	±0.03%F.S/℃（≤1bar）
	±0.02%F.S/℃（＞1bar）
	±0.03%F.S/℃（≤1bar）
Full-scale temperature drift:	±0.02%F.S/℃（＞1bar）
Operating temperature:	-20℃~80℃
Storage temperature:	-40℃~120℃
Power supply:	12.5~30VDC
output signal:	4～20mA；1～5VDC；0～5VDC；
Pressure port:	M20×1.5; G1/2; or user's choice
Display range:	-1999~9999
Installation method:	vertical axial installation
shell material:	Cast aluminium; stainless steel 1.4301(304)
Diaphragm material:	Stainless steel 1.4435 (316L)
O-ring:	fluororubber
Insulation resistance:	100MΩ 100VDC
Enclosure rating:	IP65&IP67
Protocol	HART&RS485

Selection table

KAP40-	Smart Pressure Transmitter
	Display method
		no display
		LCD display
		LED display
		Measuring range
			Negative pressure-1 to 0bar
			Gauge pressure (for the range, see the range code table. This item is for general application selection) (*)
			Absolute pressure (see range code table for range)
			Power supply
				12.5~30VDC
				Process connection (male thread)
					M20×1.5 (*)
					G1/2
					G1/4
					NPT1/2
					Output signal type
						4～20mA（*）
						0～5V
						1～5V
						Accuracy class
							0.1%
							0.25%
							0.5%
							(special option) VARIO
								Explosion-proof function: EXiaⅡBT4
								HART communication protocol
								RS485 communication protocol
								1.4301(304) shell
								1.4435 (316L) shell
The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.
