Introduction

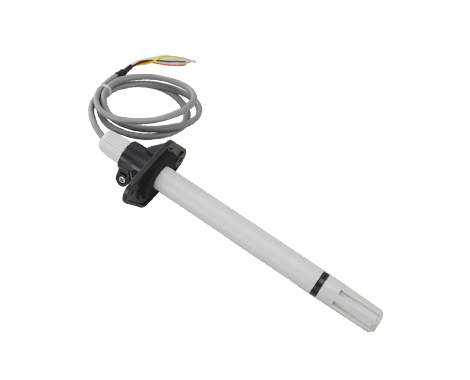

TKH35 network temperature and humidity transmitter adopts high-quality digital integrated sensor and reliable digital processing circuit, so as to convert the temperature and humidity in the environment into the corresponding standard MODBUS RS-485 signal, which can be reliably communicated with the host. Centralized monitoring of machine systems, etc.

Features

Excellent stability, low hysteresis, strong resistance to chemical contamination and excellent repeatability.

application

It is suitable for temperature and humidity measurement in communication rooms, offices, workshops, computer rooms, laboratory warehouses, hospitals, archives, museums, HVAC, building automation and other environments.

technical parameter

Note: The following parameters are all at 25°C unless otherwise specified.
Range and Accuracy
Temperature range:-40~80℃
Humidity range:0~99.9%RH
Resolution:Temperature: 0.1°C/°F
Humidity: 0.1%RH
Accuracy:Temperature: ±0.3°C
Humidity: ±2%RH


Output power supply and wiring
Supply voltage:DC12V~DC36V
Product Size:198.5mm(L)x15.65mm(D)
output signal:RS485 signal
letter of agreement:Standard MODUUS RTU protocol
The sampling period:3S

Selection table

TKH35-Pipeline temperature and humidity transmitter

Output signal type

485 MODBUS RTUs
Power supply

9...36V DC
Probe rod material

ABS plastic
The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.
