Introduction

TK200 uses a computer chip as the main control unit, adopts multiple digital filter circuits, automatic interference recovery, PID control and self-tuning functions, and receives the original signal of the temperature sensor.

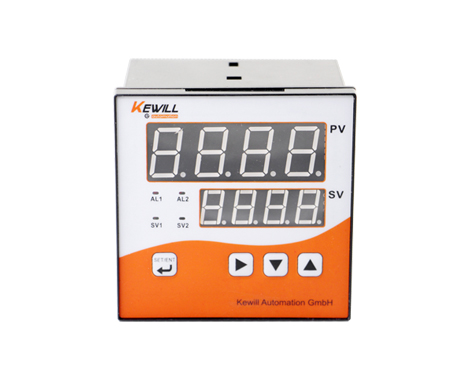

LED display window PV: present value (Process value), red 4-digit display. SV: Setting value, displayed in green 4 digits. Barrel view with percent scale

technical parameter

Temperature and Accuracy
Ambient temperature:			0ºC...50ºC
storage temperature:			0ºC...50ºC
Relative humidity:			35%~85% (no condensation)
control precision:			≤±0.25%FS
Resolution:			1ºC
Display method:			4 bit digital tube

Material pressure protection
Protection class:			IP30
case:			Cast aluminium body & stainless steel 1.4301 (304)

Output power supply and wiring
Power Range:			AC 180~240V,50Hz
Relay load:			220VAC、3A
Maximum power consumption:			＜5W
Lead way:			Terminal wiring

Selection table

TK200-

Universal temperature controller (light column meter)

Dimensions

48×48×81 hole size 45*45 small and square

48×96×81 hole size 45*91 vertical compact rectangular

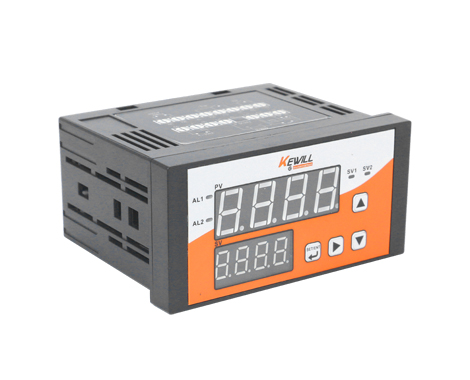

96×48×81 hole size 91*45 horizontal compact rectangular

72×72×81 hole size 67*67 square

96×96×81 hole size 91*91 large square

first set of outputs

no output

Relay

SSR

4...20mA

0...20mA

0...5V

0...10V

1...5V

2...10V

The second set of outputs

no output

Relay

SSR

4...20mA

0...20mA

0...5V

0...10V

1...5V

2...10V

input signal

k-degree thermocouple

E graduated thermocouple

J-graded thermocouple

Cu50 thermal resistance

PT100 thermal resistance

PT1000 thermal resistance

Call the police

1 set of alarms

2 groups of alarms

3 groups of alarms

Meter power

24V DC

85-265V AC

Supplementary communication functions

RS232

RS485

TTL

RS232-MODBUS

RS485-MODBUS

The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.
