Introduction

Features

It is suitable for computer equipment, electrical, mechanical, scientific research departments and various industrial places that need to observe temperature and humidity

Multiple display modes (temperature/humidity/pressure) and various input options (thermocouple, voltage or current input signal) for easy installation

Showing an error under +1, which can be corrected from the panel.

The output function can be used in controllers, PLCs, monitoring systems, and connected with warning lights and buzzers.

Customized service: Different display and frame sizes can be made according to customer design

technical parameter

LED Color:Red 7-segment LED
Input type:K / PT100Ω/ DC 4...20mA / DC 0-10V / DC 2-10V / Modbus-RS485
power supply:AC 85-265V 50/60Hz (input 4-20mA, with 1 group DC24V)
Ambient temperature:20...60℃
environment humidity:5...85%RH (frame and panel can be enhanced waterproof, moisture proof, suitable for wet environment)
Frame Material:Black Aluminum/Acrylic
Panel Material:Front Panel: Red Acrylic Clear

Backplate: Black Acrylic Opaque
Install:hook up
Optional features:Relay output ON-OFF control contact

4-20mA / 0-10V retransmission

Selection table

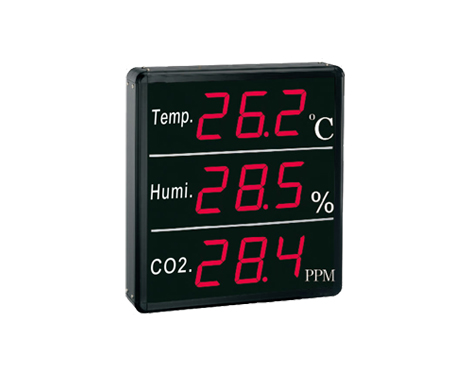

TK300-Temperature and humidity display

size style

Select according to the above file
Input signal method

Integrated sensor
K
PT100
DC 4...20mA
MODBUS-RS485
Power supply

85...265V AC
DC24V
custom function

No customization
Integrated warning light
Overall material 304
Customized residual chlorine display pp.m
Customized pH display ph
Customized water level display M
The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.
