Introduction

Principle & Structure

Adjustable liquid expansion temperature switch, simple IP40 protection design, rotatable micro control switch. A reliable temperature control device with a setting range up to 210°C. Supplied with complete temperature switch bushings

Features

High precision, compact design, low hysteresis, easy installation

application

TK12 series temperature switches can meet different requirements for temperature control in hydraulic and lubricating transmission systems, and are used to detect whether the temperature exceeds the maximum or minimum limit.

technical parameter

Adjustable range:0...90℃(090)
40...210°C (210)
Lag:4±1K℃(090)
9±2K°C (210)
Maximum temperature:130℃ (090)
250°C (210)
Micro switch:SPDT SPDT, 250VCA, 15A
Set up the controller:External - scale knob
shell:ABS
Electronic entry:Cable gland M20×1.5
Protection level:IP40

Selection table

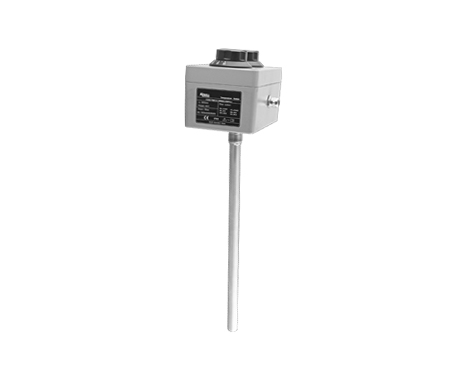

TK12-Adjustable temperature switch

Temperature adjustable range

0~90℃
40~210℃

Threaded interface

M20×1.5 external thread

material

brass

Probe length

100mm (minimum)
200mm
Special custom

Threaded interface rod length
The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.
