Introduction
Principle & Structure

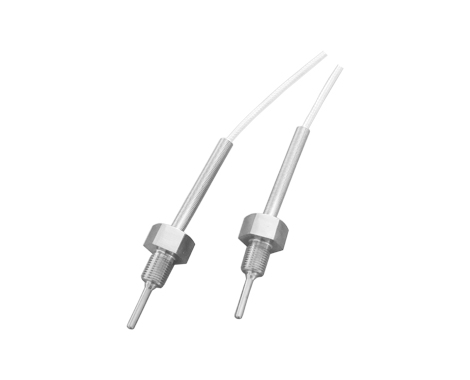

The TT21 contains a thermocouple probe, and the electrodes of the thermocouple are composed of two different conductor materials. When there is a temperature difference between the measuring end and the reference end, thermoelectric potential will be generated, and the thermoelectric potential corresponds to the temperature value. The standard probe is K, E, T division, and other divisions can be provided according to user requirements.
Features
Simple installation, a variety of ranges are available, and probes of various specifications are available
Compact structure, wide range (-200...600℃)
High pressure resistance, can reach 100bar
A variety of graduation numbers are optional
Optional cabinet-mounted control table for connection use
application
Suitable for measuring water, oil and gas media
It can be used in water supply system, hydraulic and pneumatic system, cooling system, heating system, air conditioning system, automation engineering, etc.
